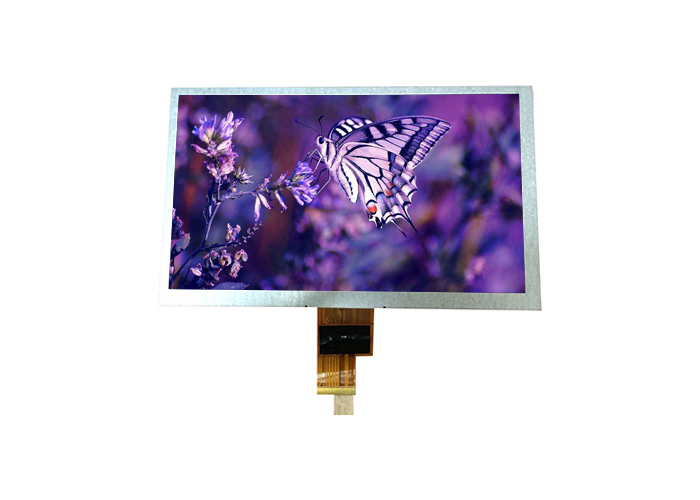

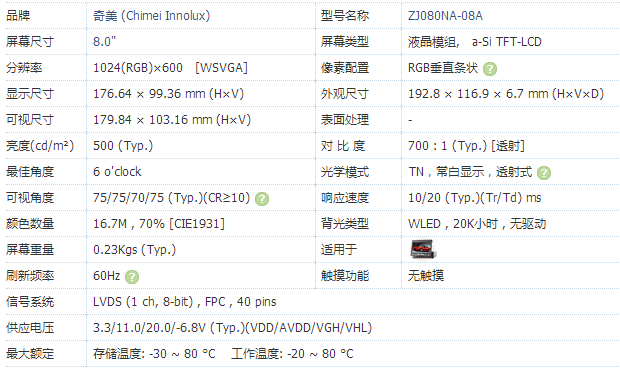

Panel brand (INNOLUX)

Panel model: ZJ080NA-08A

Panel type: a-Si TFT-LCD, LCD screen

Panel size: 8.0 inches

Resolution: 1024 (RGB) * 600

Display mode: TN, normally white display, transmissive

Display area: 176.64 * 99.36mm

Exterior dimensions: 192.8 * 116.9 * 6.7mm

Surface treatment: Hard coating

Panel brightness: 500cd/m ² (Typ)

Contrast ratio: 700:1 (Typ.) (transmission)

Display color: 16.7M (8-bit), CIE1931 70%

Response time: 10/20 (Typ.) (Tr/Td) (ms)

Viewing angle: 75/75/70/75 (Typ.) (CR ≥ 10) (left/right/up/down)

Scanning frequency: 60Hz

Light source type: WLED (no driver)

Quantity per box: 30 PCS

Packaging box size: 530 * 355 * 255mm (length * width * height)

Gross weight of packaging box: 9.84Kgs
