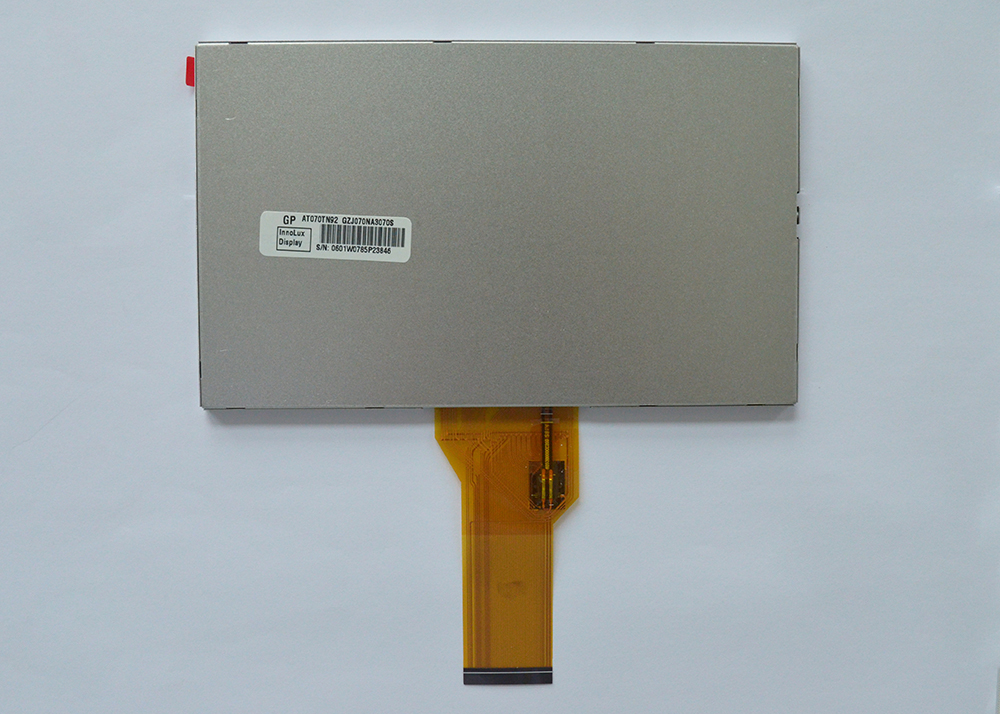

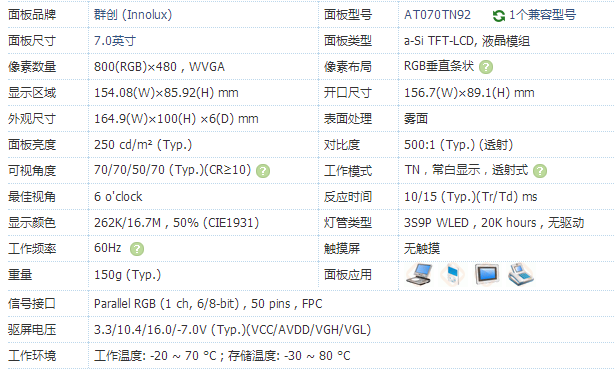

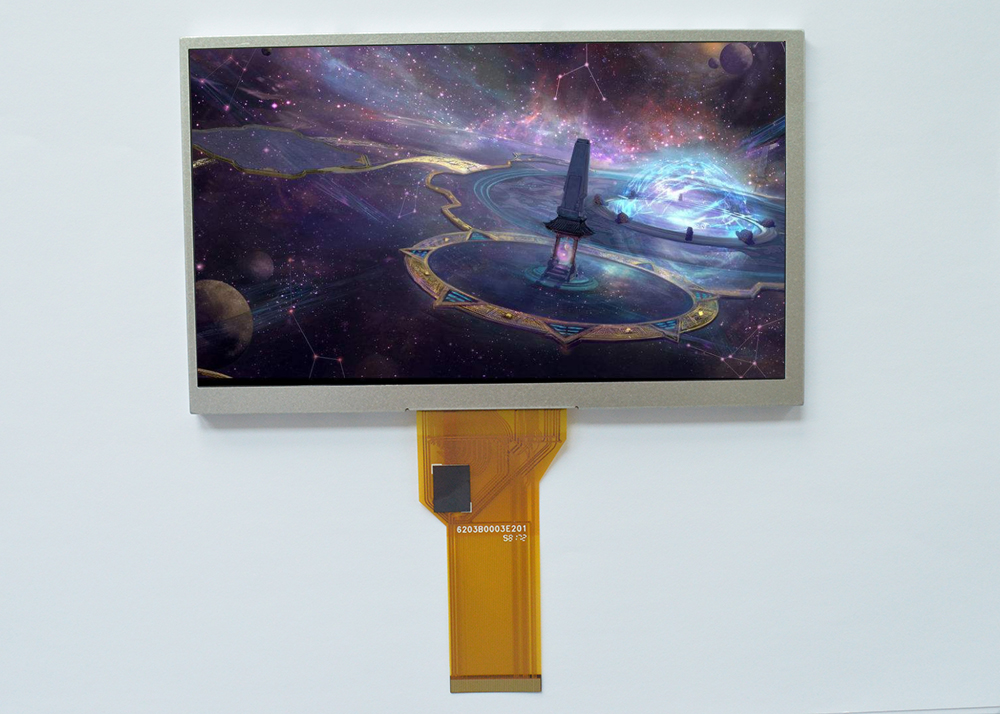

Panel brand: Innolux

Panel model: AT070TN92

Panel type: a-SiTFT-LCD, LCD screen

Panel size: 7.0 inches

Resolution: 800 (RGB) * 480

Display mode: TN, normally white display, transmissive

Display area: 154.08 * 85.92mm

Exterior dimensions: 164.9 * 100 * 5.7mm

Surface treatment: matte finish

Panel brightness: 250cd/m2 (Typ.)

Contrast ratio: 500:1 (Typ.) (transmission)

Display color: 262K/16.7M (6-bit/6-6bit Dithering)

Response time: 10/15 (Typ.) (Tr/Td) (ms)

Viewing angle: 70/70/50/70 (Typ.) (CR ≥ 10) (left/right/up/down)

Scanning frequency: 60Hz

Light source type: 3S9PW LED

Signal interface: Parallel RGB (1ch, 6/8-bit)

Panel voltage: 3.3V/10.4/16.0/-7.0V (Typ.) (VCC)

Aspect ratio: 15:9

Quantity per box: 50PCS

Packaging box size: 530 * 355 * 255mm (length * width * height)

Gross weight of packaging box: 10.682 ± 5% Kg
