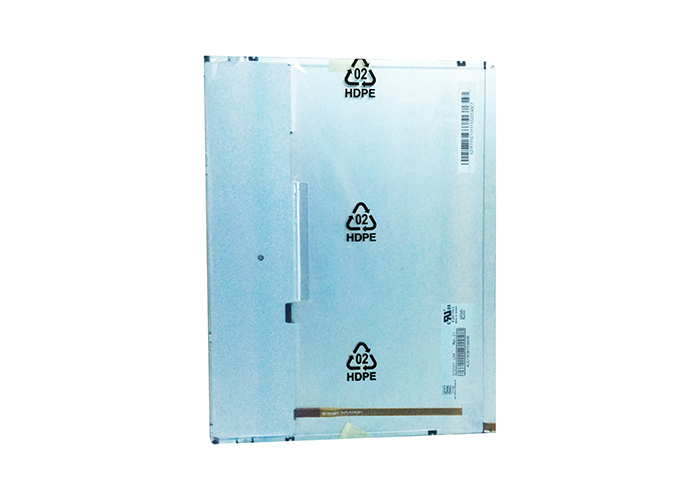

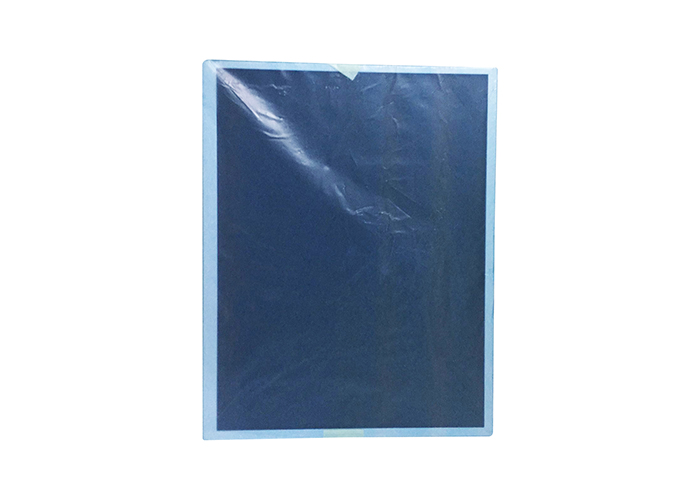

Panel brand: CMO

Panel model: G121X1-L04

Panel size: 12.1 inches

Panel type: a-Si TFT-LCD, LCD module

Pixel count: 1024 (RGB) × 768, XGA

Pixel layout: RGB vertical stripe

Display area: 245.76 (width) × 184.32 (height) mm

Visible area: 249.0 (width) × 187.5 (height) mm

Appearance dimensions: 260.5 (width) x 204 (height) x 7.7 (thickness) mm

Surface treatment: matte finish, Hard coating (3H)

Panel brightness: 500 cd/m ² (Typ.)

Contrast ratio: 700:1 (Typ.) (TM)

Viewing angle: 80/80/70/70 (Typ.) (CR ≥ 10)

Working mode: TN, normally white display, transmissive

Reaction time: 5/11 (Typ.) (Tr/Td) ms

Display color: 262K/16.2M, 63% (CIE1931)

Light source type: WLED, 30K hours, including LED driver

Working frequency: 60Hz

Touch screen: None

Panel weight: 435/465g (Typ./Max.)

Signal interface: LVDS (1 ch, 6/8-bit), 20 pins, terminal

Screen driving voltage: 3.3/5.0V (Typ.)

Work environment: Work: -30~70 ° C; Storage: -40~80 ° C
